Engineering Principles of Active Aerodynamics in Modern Hypercars

Modern hypercars integrate active aerodynamic systems with movable components to dynamically manage airflow, precisely balancing downforce and drag across diverse driving conditions. This sophisticated engineering enhances stability and grip during cornering or braking while minimizing air resistance for peak straight-line speed.

Julian Beaumont

September 28, 2026 · 5 min read

Modern hypercars integrate active aerodynamic systems to dynamically manage airflow, precisely balancing downforce and drag across diverse driving conditions. This sophisticated engineering allows vehicles to enhance stability and grip during cornering or braking, while simultaneously minimizing air resistance for peak straight-line speed and fuel efficiency. By combining movable components, advanced sensors, and intelligent control logic, these systems enable hypercars to adapt their aerodynamic profile in real time, delivering a more refined and responsive driving experience.

The fundamental challenge in automotive aerodynamics lies in the inherent trade-off between downforce and drag. Downforce, a vertical force, pushes the car towards the ground, increasing tire traction and improving stability and handling. However, generating downforce typically increases drag, a resistive force that opposes forward motion, thereby reducing speed and fuel efficiency. Active aerodynamics addresses this by providing a mechanism to dynamically move components, optimizing both drag and downforce in real time to achieve a net improvement in the car's overall performance, as noted by COMSOL. These active features build upon stationary aerodynamic elements, such as tire vents, vanes, fins, humps, and diffusers, which are designed to direct air to optimal locations for cooling, initial downforce, and stability.

Engineering Principles of Movable Aerodynamic Components

The core engineering principle behind active aerodynamic components is their capacity for dynamic adjustment, allowing them to precisely alter a vehicle's interaction with the surrounding airflow. Unlike fixed aerodynamic structures, active elements are designed to change their position or angle rapidly, modifying aerodynamic forces on demand.

Movable flaps are a common and effective component, found in vehicles from manufacturers such as Mercedes and Pagani Huayra. These flaps can be strategically placed in areas like the front splitter and rear diffuser. Research into their dynamic characteristics, including transient numerical simulations of their opening process, indicates that the aerodynamic downforce generated is greater when there is a larger body surface area in front of an open flap and a smaller area behind it. Flaps can pivot up to 90 degrees from a resting position within the body cavities, enabling them to function as highly effective aerodynamic brakes, a principle demonstrated by their use in the Mercedes 300 SL.

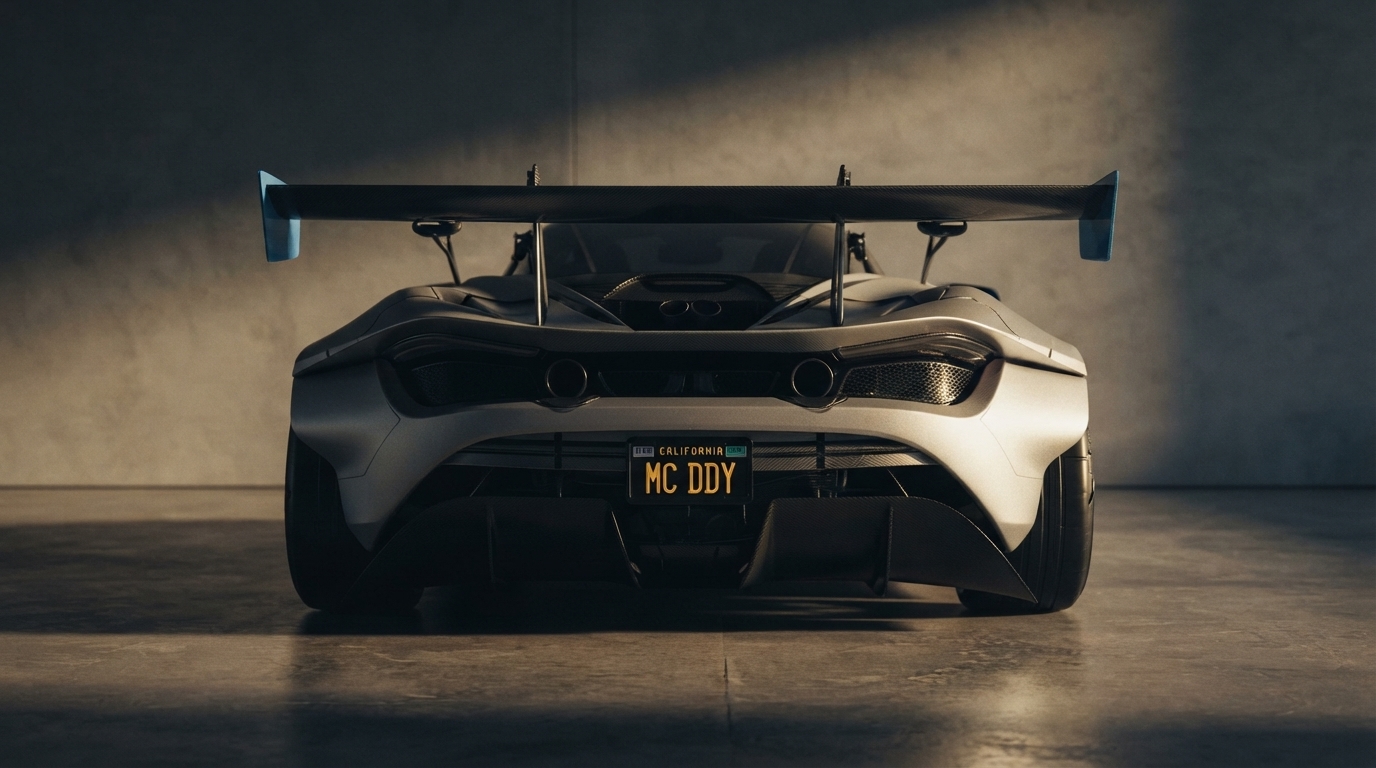

Active rear wings and spoilers are engineered to be repositioned to alter the airflow over the rear of the vehicle. By changing their angle of attack or height, these components can either increase downforce for enhanced grip during cornering or flatten to reduce drag for higher straight-line speeds. Similarly, elements within the rear diffuser, such as movable flaps, contribute to dynamic downforce generation by channeling air under the car to create low-pressure zones, thereby increasing stability.

Active air brakes represent another critical movable component. These are designed to deploy rapidly during heavy braking events to significantly increase aerodynamic drag, assisting in deceleration. For instance, the McLaren MP4-12C features an air brake that deploys at speeds exceeding 95 kilometers per hour. The engineering of these components emphasizes not only their ability to move but also their precision, speed of response, and structural integrity to withstand significant aerodynamic loads during dynamic adjustments.

Control Systems and Logic for Dynamic Adjustment

The dynamic optimization of downforce and drag in hypercars is orchestrated by sophisticated control systems that continuously interpret real-time driving conditions and trigger precise actuator responses. These systems integrate a network of sensors to gather critical data, which is then processed by control logic to ensure active aerodynamic components are adjusted optimally for the prevailing scenario.

Key sensor inputs that feed into these control systems include:

Vehicle speed sensors: These are fundamental, as aerodynamic forces are directly proportional to the square of the vehicle's speed. Adjustments to components like rear spoilers and diffuser flaps are often directly linked to the vehicle's velocity, ensuring appropriate downforce or drag reduction for the current speed.

Steering angle sensors: Input from the steering wheel angle allows the system to anticipate and respond to cornering maneuvers. By adjusting downforce distribution or increasing overall downforce, the system can enhance grip and stability through turns.

Yaw rate sensors: These sensors measure the vehicle's rotational velocity around its vertical axis. Yaw rate data is crucial for dynamic stability management, enabling the system to make adjustments that counteract unwanted rotational forces and maintain vehicle composure.

Acceleration sensors: Providing data on longitudinal and lateral forces, acceleration sensors offer further insight into the vehicle's dynamic state, informing decisions related to braking, acceleration, and cornering.

Brake pedal position sensors: These are critical for activating active air brakes and other drag-inducing elements during deceleration, ensuring maximum braking efficiency.

Engine temperature sensors: While not directly influencing aerodynamic force generation, these can inform decisions regarding active grille shutters or other cooling-related aerodynamic features, balancing cooling needs with aerodynamic efficiency.

Once sensor data is collected, the control logic, often communicating via a Control Area Network (CAN), processes this information. This logic determines the optimal configuration for various active components, such as air dams, flaps in the front splitter and/or rear diffuser, rear air-brakes, rear spoilers, grille shutters, and wheel shutters. Actuators then physically adjust these components, executing the commands from the control unit. This continuous feedback loop allows hypercars from manufacturers like Audi, BMW, Bugatti, Ferrari, Ford, Koenigsegg, McLaren, Pagani, and Porsche to dynamically manage their aerodynamic profile, effectively balancing the trade-off between speed and stability in real time.

Performance Benefits of Specific Active Components

Active aerodynamic components deliver quantifiable performance benefits by dynamically manipulating airflow to either increase downforce for stability or reduce drag for speed, and to enhance braking. This real-time optimization fundamentally transforms a hypercar's handling characteristics and straight-line performance.

Increased Downforce: Components such as active rear wings and movable diffuser flaps are specifically engineered to increase downforce. Downforce is a vertical force that pushes the car towards the ground, significantly increasing tire traction and improving stability and handling, particularly during high-speed cornering. By adjusting the angle of attack of a rear wing or the position of diffuser flaps, the system can generate more low-pressure areas beneath the vehicle or direct airflow to create a greater downward force. This enhances grip without permanently incurring the drag penalty associated with fixed, high-downforce setups, allowing for more aggressive cornering speeds and greater stability.

Reduced Drag: Conversely, for maximum straight-line speed and fuel efficiency, active systems can reconfigure components to minimize drag, which is a resistive force opposing forward motion. For example, an active rear wing might flatten its profile, or flaps might close to create a smoother, more streamlined aerodynamic shape. This reduction in air resistance allows the vehicle to accelerate faster and achieve higher top speeds with less power output. The ability to dynamically reduce drag is crucial for hypercars aiming for peak velocity on long straights, providing a significant advantage over vehicles with static aerodynamic profiles.

Improved Braking: Active air brakes represent a direct and substantial contribution to braking performance. When deployed, typically during heavy braking events, these components rapidly increase the vehicle's aerodynamic drag. This additional resistive force supplements the mechanical braking system, helping to decelerate the car more quickly and reduce stopping distances. The McLaren MP4-12C's air brake, which deploys at speeds above 95 kilometers per hour, exemplifies this function, providing a significant aerodynamic aid to deceleration and enhancing overall safety and control during high-performance driving.

The dynamic interplay of these components, governed by sophisticated control logic, allows hypercars to achieve a versatile aerodynamic profile. This adaptability ensures optimal performance across a spectrum of driving conditions, from high-speed runs requiring minimal drag to aggressive cornering and braking demanding maximum downforce and stability, ultimately delivering a superior and more controlled driving experience.
